HH11 Two-way Hydraulic clip-on plate hinge

Model

HH11 Two-way Hydraulic clip-on plate hinge

Product Description

Product: Two-way Hydraulic clip-on plate hinge
Opening Degree: 100°
Range of doors thickness: 16-26mm
Height of Hinge Cup: 11.3mm
Diameter of Hinge Cup: 35mm
Diameter of door(K): 3-7mm
Distance of two hole center: 48mm

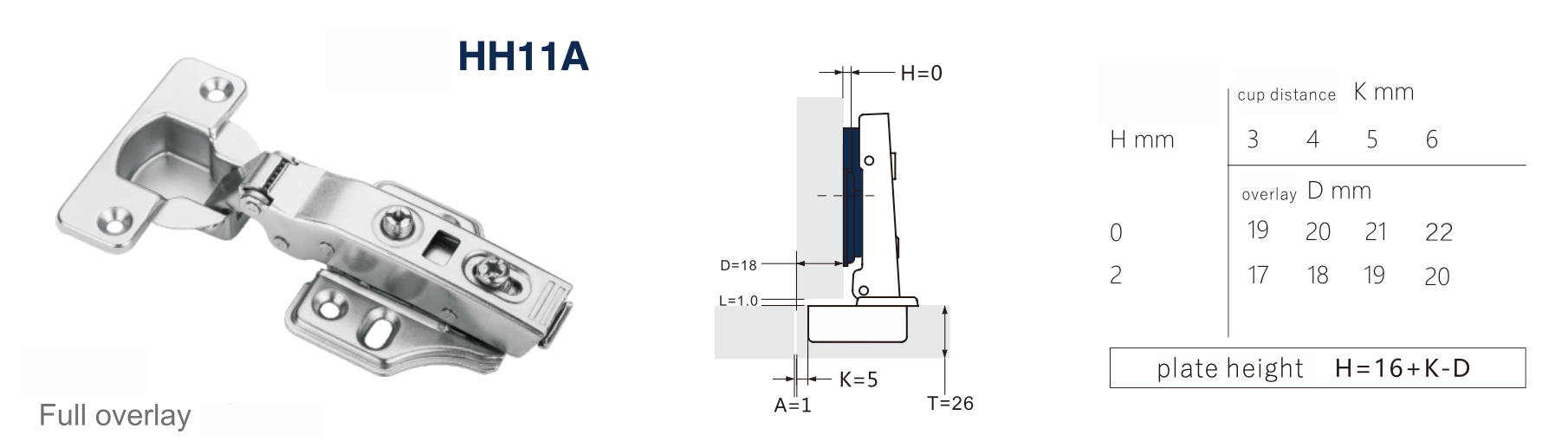

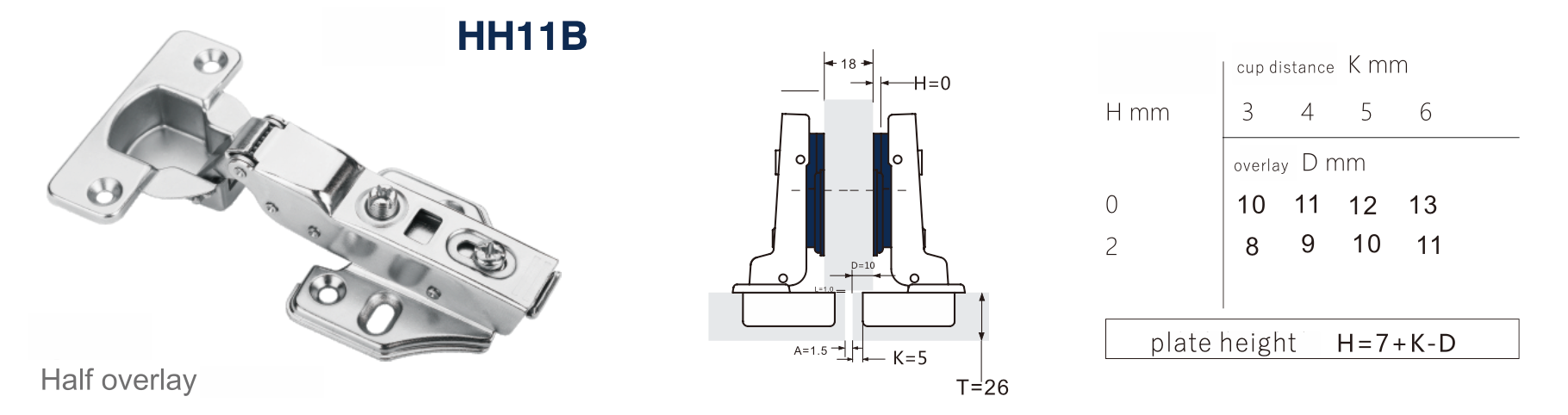

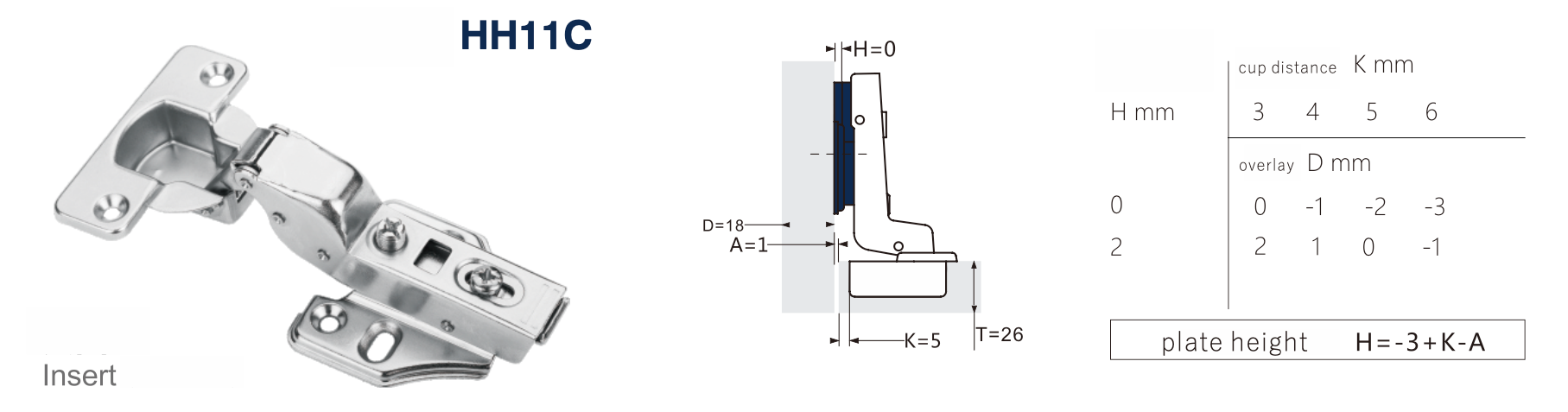

Product Dimension

Related Products

KA01 One-way Hydraulic fixed mounting plate hinge

105° One-way hydraulic fixed mounting plate hinge

HE11 Two-way Hydraulic clip-on plate hinge

105° Two-way Hydraulic clip-on plate hinge

KJ165 165° hydraulic Clip-on angle door hinge

165° hydraulic angle door hinge
