Model
HH01 Two-way Hydraulic clip-on plate hinge
Product Description
Product: Two-way hydraulic fixed mounting plate hinge
Opening Degree: 100°
Range of doors thickness: 16-26mm
Height of Hinge Cup: 11.3mm
Diameter of Hinge Cup: 35mm
Diameter of door(K): 3-7mm
Distance of two hole center: 48mm

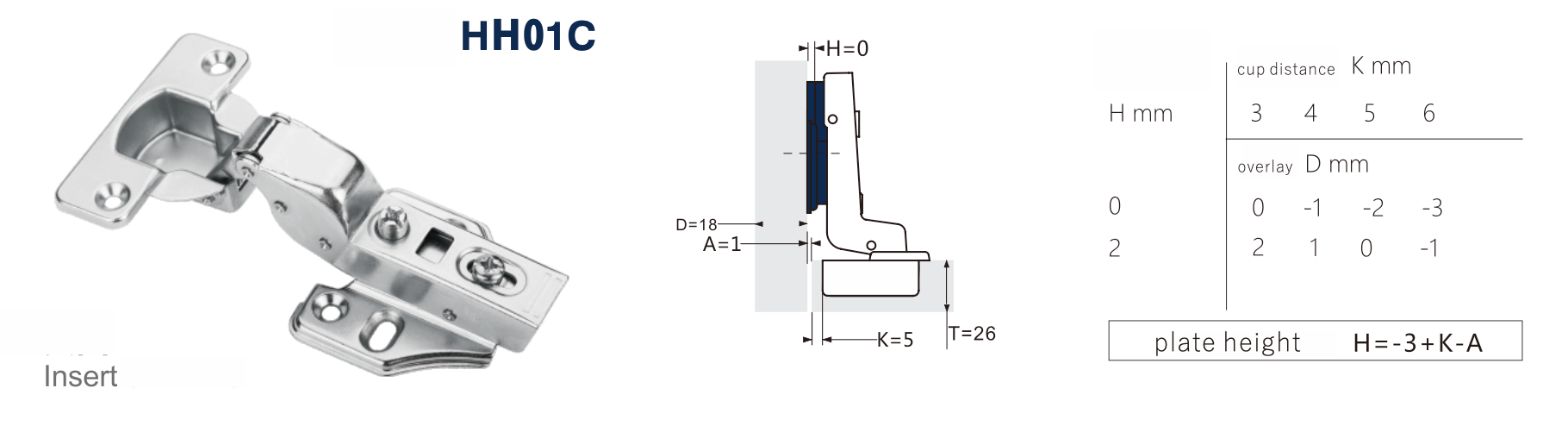

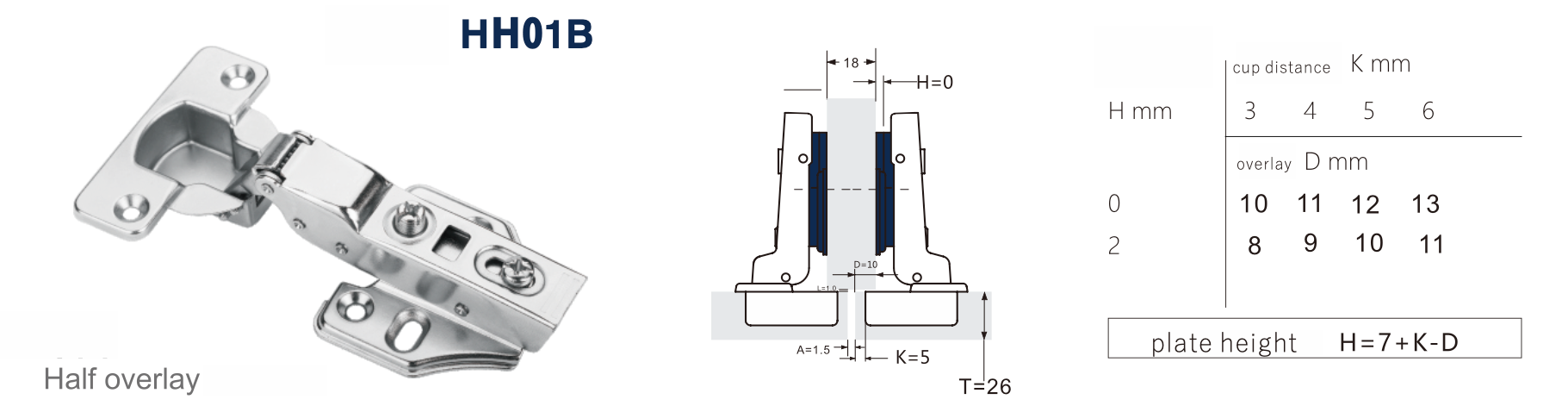

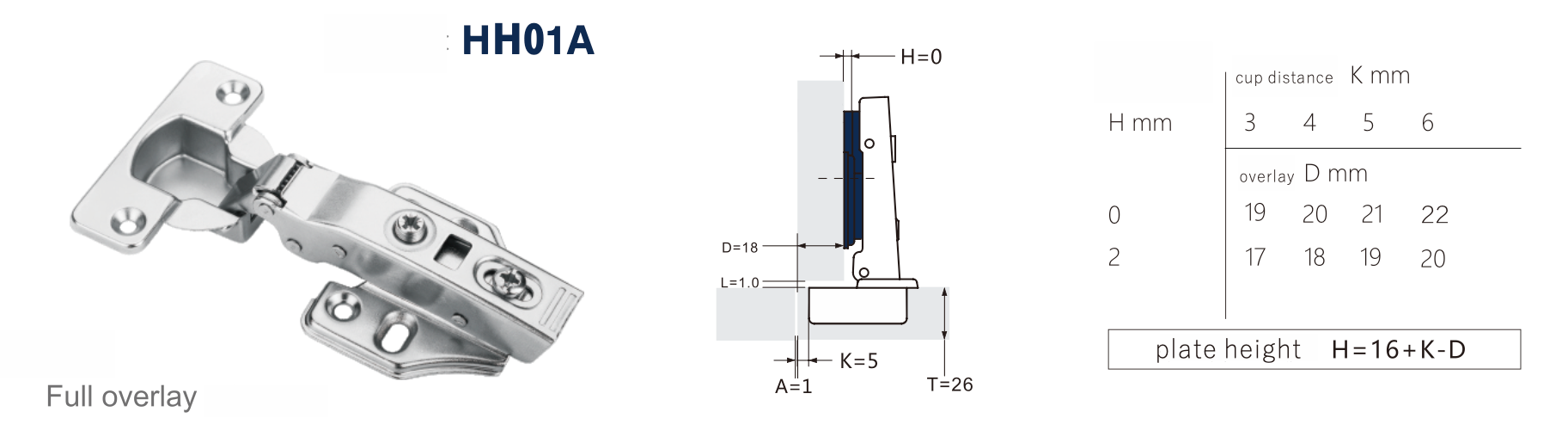

Product Dimension
