Model

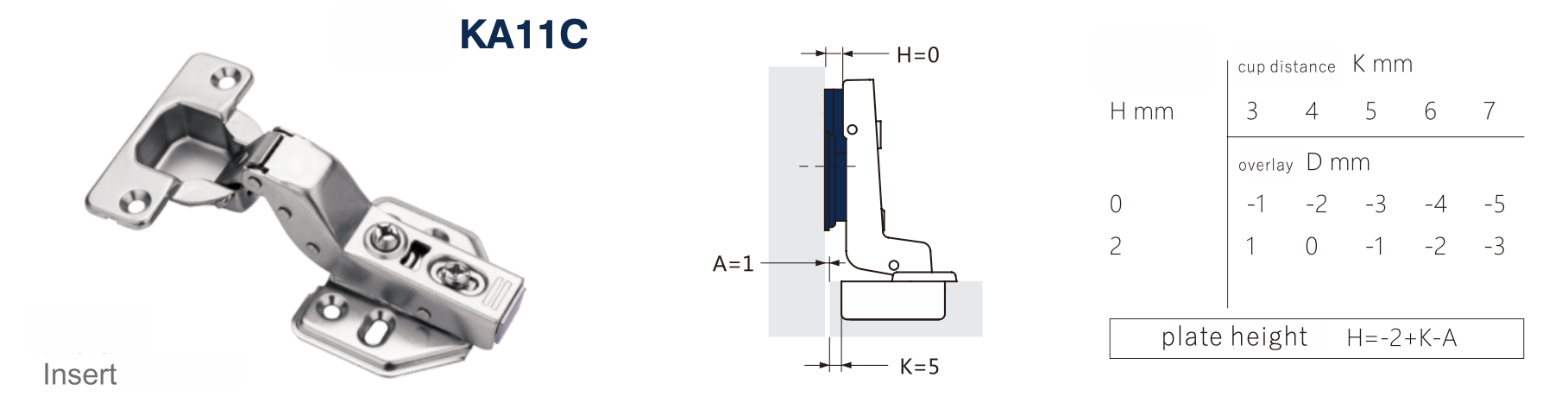

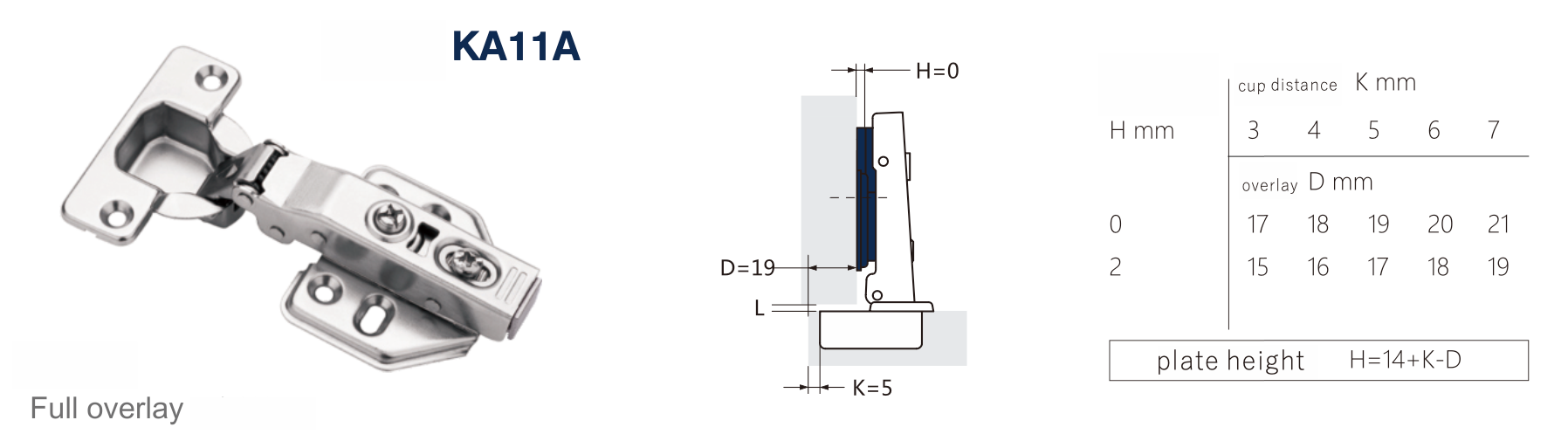

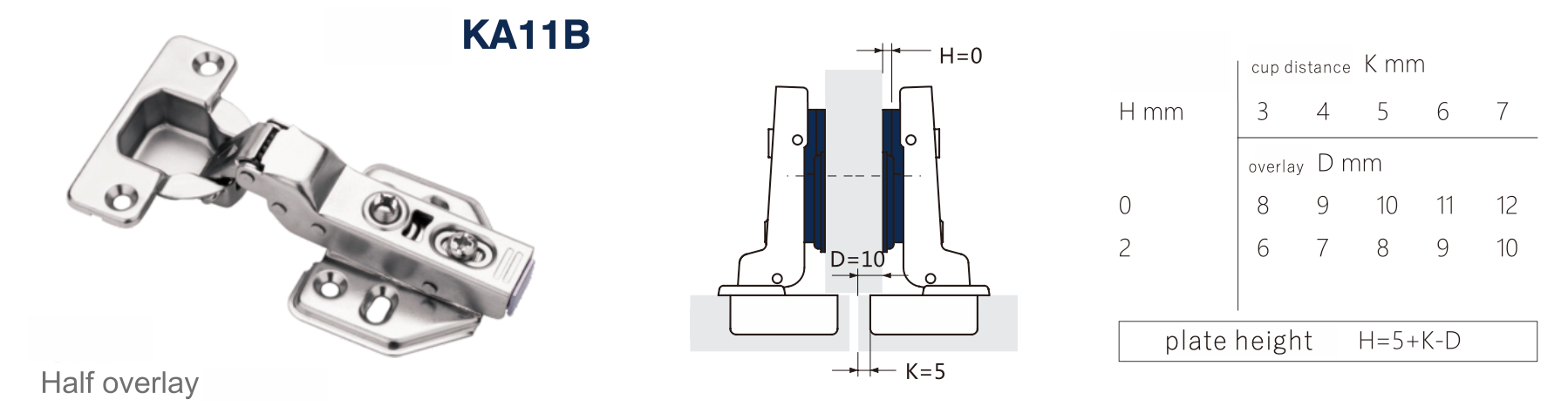

KA11 One-way Hydraulic clip-on plate hinge
Product Description

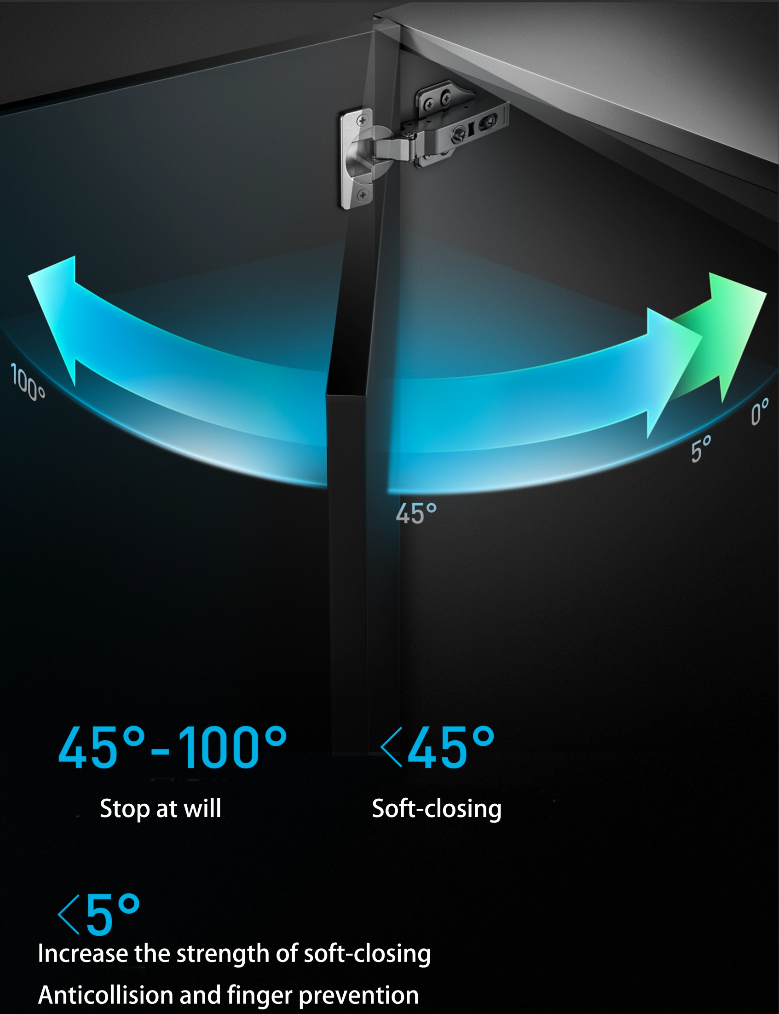

Opening Degree: 105°
Range of doors thickness: 14-21mm
Height of Hinge Cup: 11.3mm
Diameter of Hinge Cup: 35mm
Diameter of door(K): 3-7mm
Distance of two hole center: 48mm

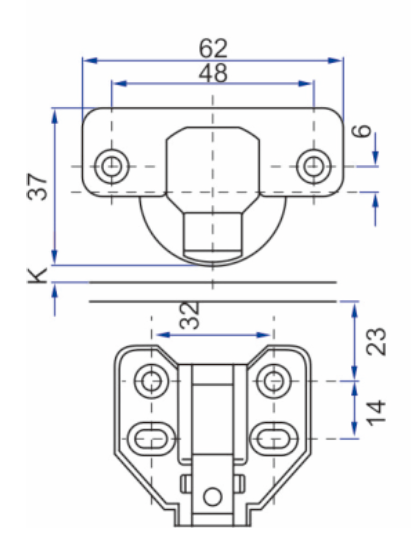

Product Dimension
