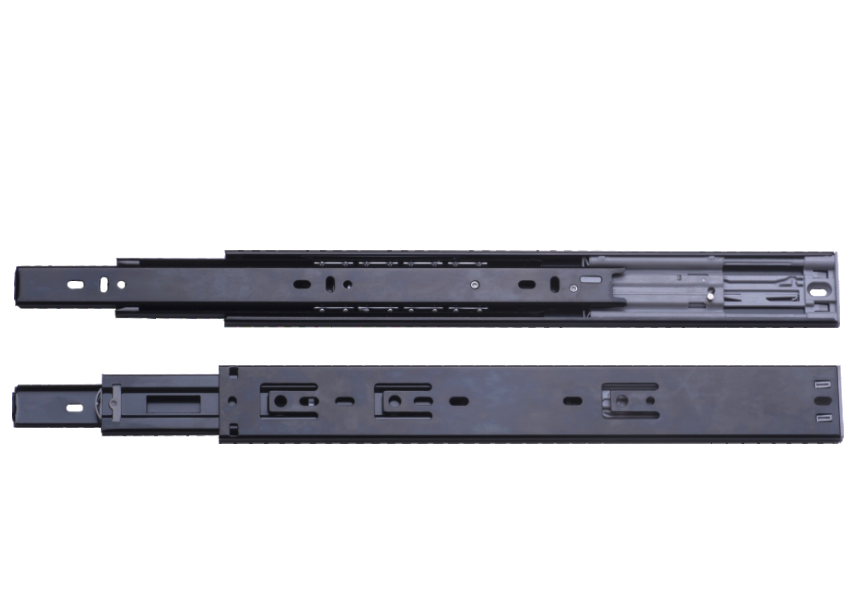

H451021 /H451221 Push to open Ball bearing runners
Product Description

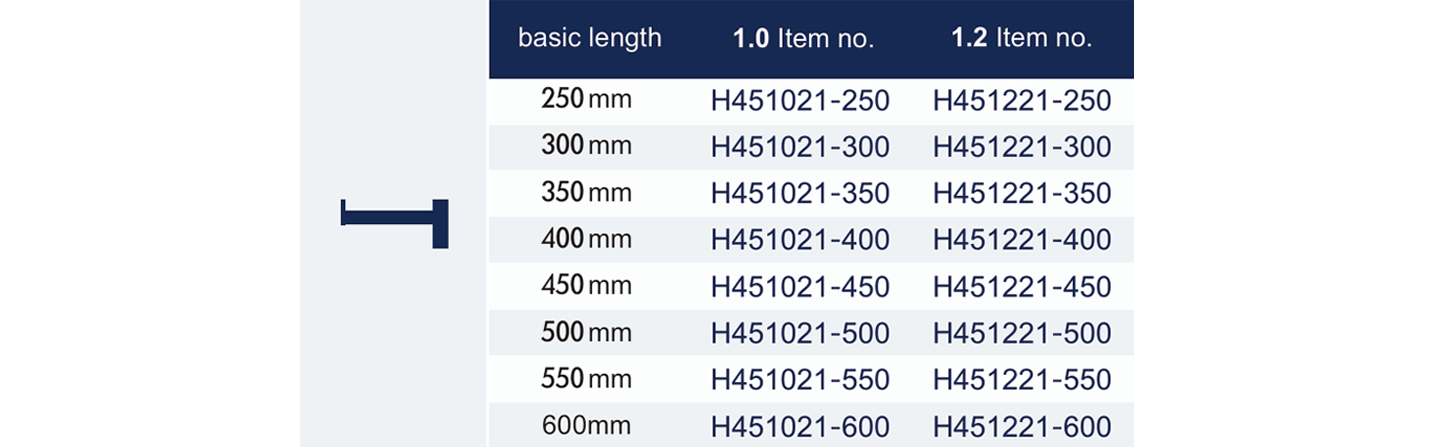

Length:200mm~600mm
Loading capacity: 35kgs
Installation width: 12.7mm
Cold rolled iron material
Finish: Electroplating white, black color
Automatic return in soft close is started from 35mm before drawer close without crashing noise

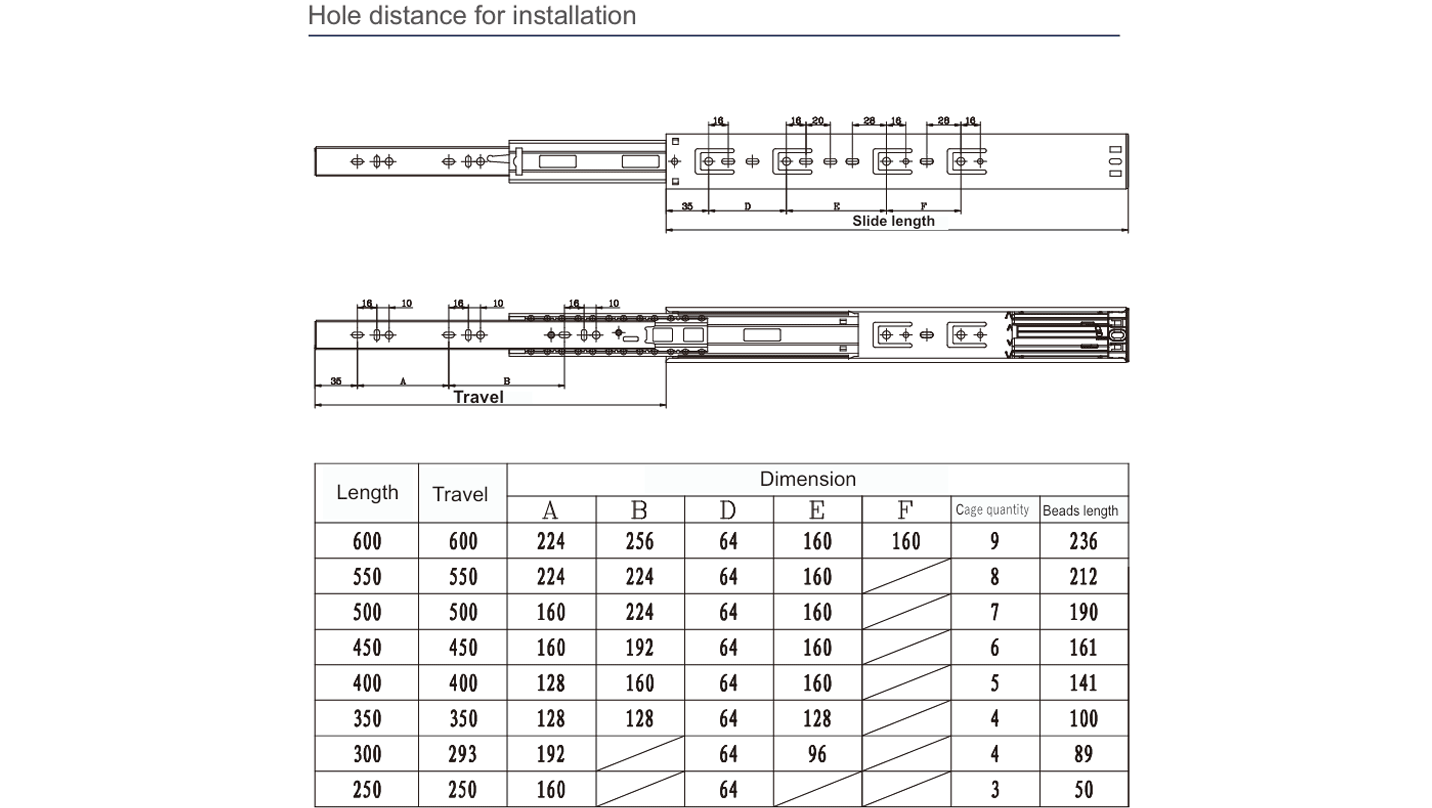

Product Dimension
